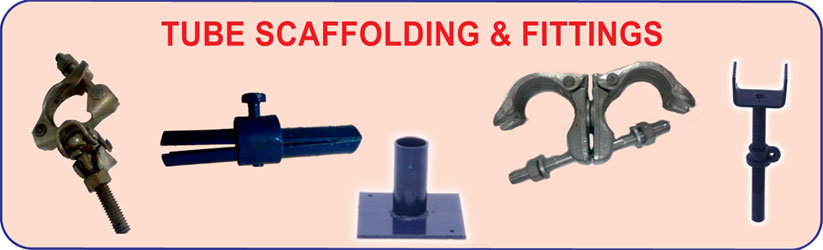

Tube Scaffolding & Fittings

We provide the following types of scaffolding & fittings :

  • Double Coupler: For connecting 40 mm N.B tubes at a right angle.
  • Swivel Coupler:Used to connect 40 mm N.B. pipes at any angle.
  • Expanding Joint Pin: Suitable to connect 40 mm NB Pipes as Ledgers.
  • Fixed Base Plate: Suitable for 40 mm nominal bore steel tubes.
  • Adjustable Stirrup Head: Designed for fine adjustment of height between 80 mm and 200 mm.

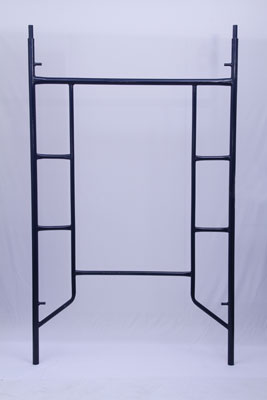

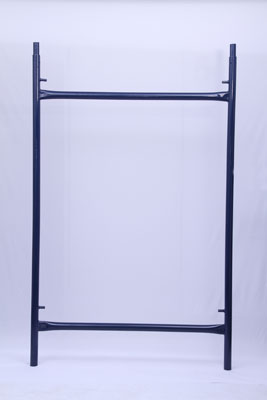

H-Frame Scaffolding

We offer a wide range of H-frame scaffolding that is manufactured `in accordance with the changing dynamics of the market. Innovated to meet the growing expectations of our clients, these possess following features and specifications:

  • Welding frames of two vertices of 2 mt (32 mm. N.B. Pipe)
  • Two horizontals of 1.22 mt (25 mm N.B. Pipe)

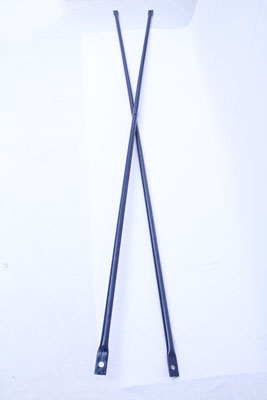

  • Frames are inter-connected with bracing at an interval of either 2 mt or 2.5 mt through pins welded on frame and locked suitably

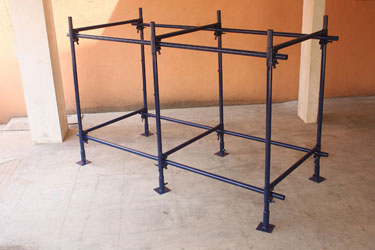

Multi Purpose Scaffolding

We offer a wide range of multi purpose scaffolding that has been fabricated using superior quality raw material. Customized as per the specifications of our clients, these cater to wide requirements of our clients spread across the globe and possess following features:

  • Consist of two vertices and one lintel from 40 mm N.B. Medium tubes
  • Lugs welded at 450 mm
  • Intervals on vertices to provide support to lintel
  • Lintels are provided with three ways clamps at both the ends to fix horizontal / ledger tubes to connect the units
  • Offered in the normal size of 6' x 4'

Advantages:

  • No fire hazards
  • Can be used repetitively
  • Handy and easy for erection at great heights
  • Termite / insect-proof
  • Long term economy
Formwork System (For RCC Wall)

We have carved a niche in the market by offering a precision engineered range of Formwork System for RCC Wall. These are available in customized as welle as standard sizes and are of two types:

  • For simple RCC wall and
  • For round RCC Wall

For Simple RCC Wall :

  • Steel system shuttering
  • Standard panels made out of 45 x 30 x 5 mm / 45 x 45 x 5 mm
  • Angles suitably slotted with 50 mm
  • Intervals, skin plate of 2.5mm
  • Thick M.S. Sheet welded to the frame of wall form/channel soldier, internal corner panels

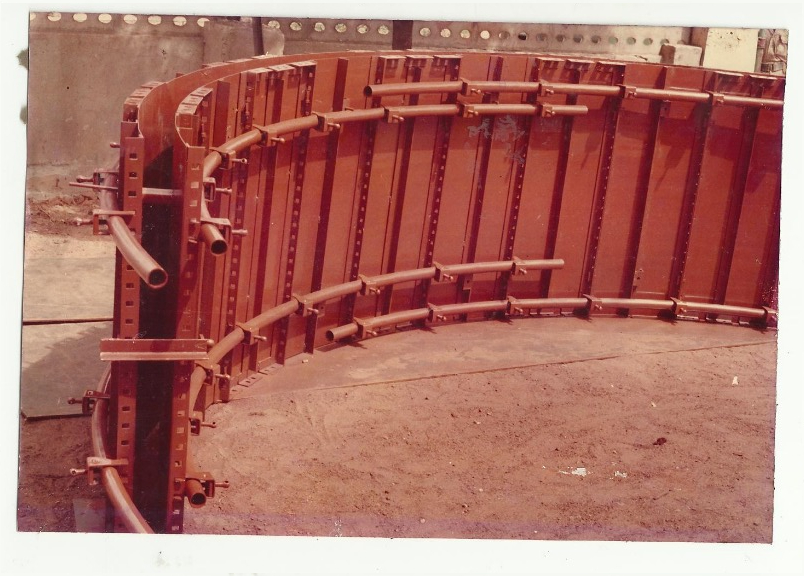

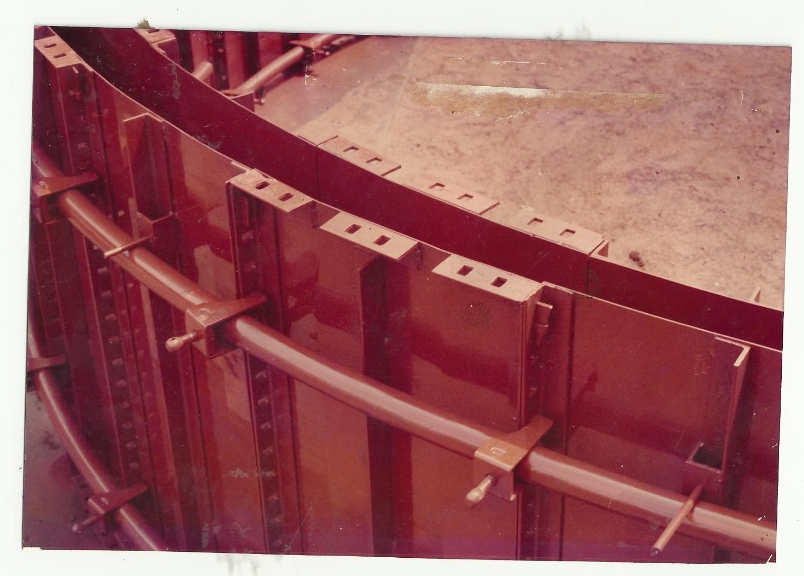

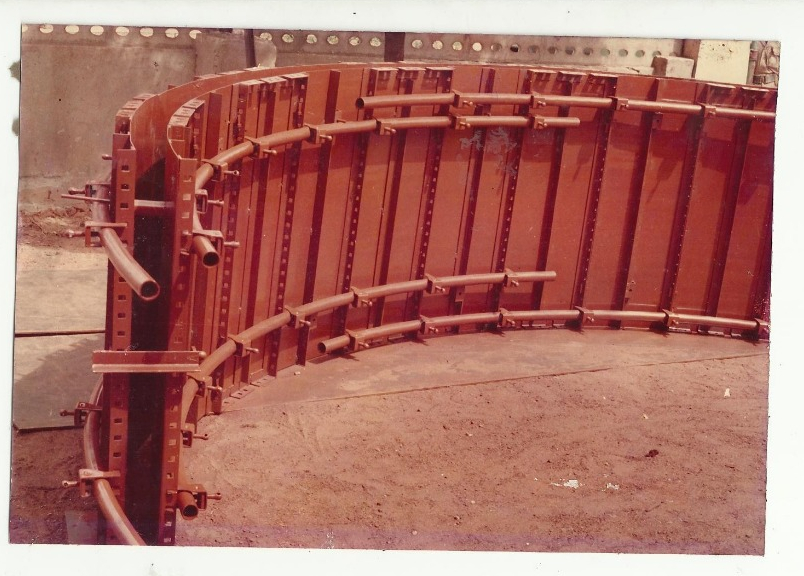

Formwork System (For Curved RCC Wall)

Our range of formwork system for curved RCC wall has been meticulously fabricated under the supervision of our team of experts. These are fabricated using superior quality raw material and are provided with wailing tubes that can be curved to suit the requirements of our clients.

For Curved RCC Wall :

  • Waling tubes will be curved to suit required configuration.

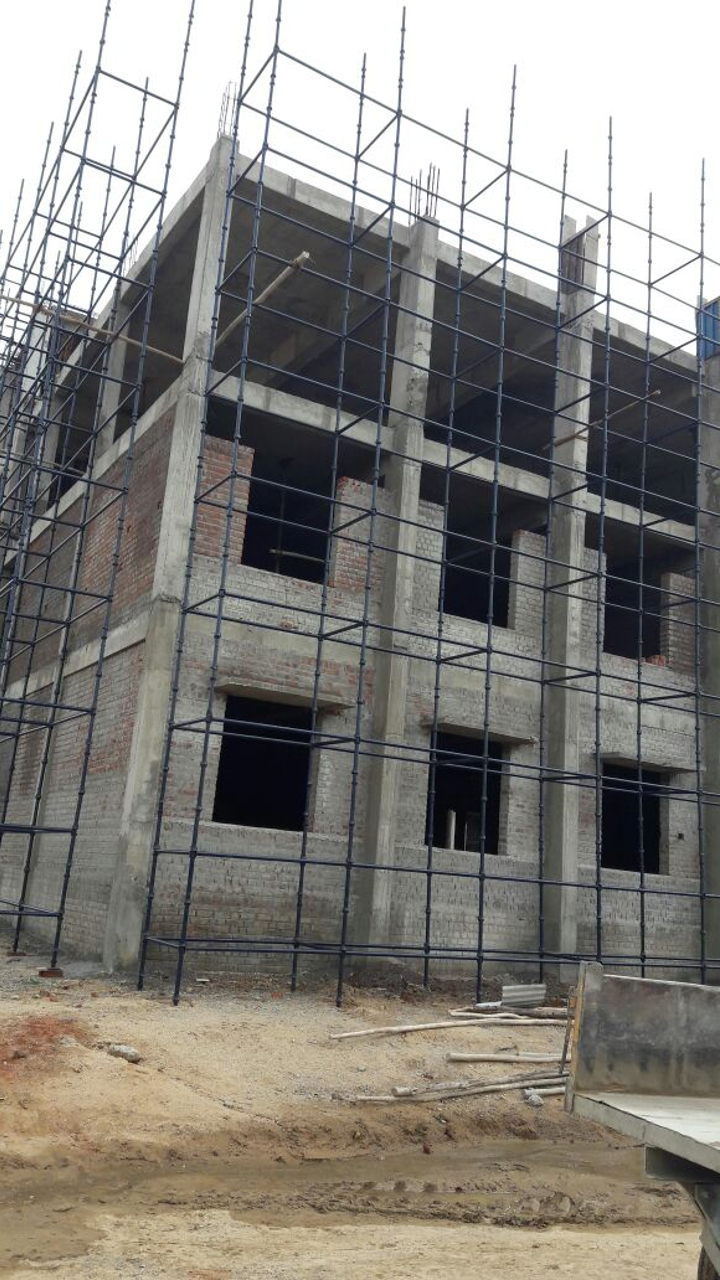

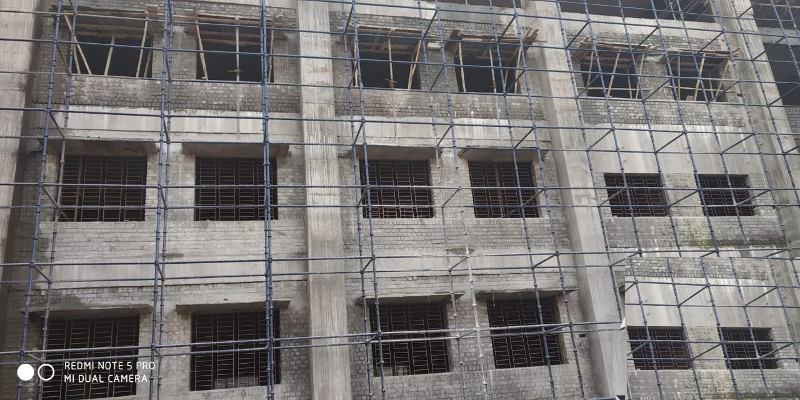

Cuplock Scaffolding

Cuplock Unique locking action makes it the fastest,safest most economic & widely used Scaffolding System in the world. There are no loose parts to lose. Cuplock is made from the highest quality Steel providing great strength while being light and easy to handle.

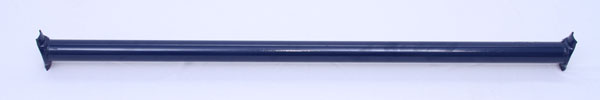

CUPLOCK HORIZONTAL STROKE LEDGER

SIZE: 1 MTR, 1.2 MTR , 1.5 MTR, 1.8 MTR and 2 MTR.

Cuplock Horizontal Stroke Ledger are Available in a range of Standard Sizes (or) can be made to a special length if required.

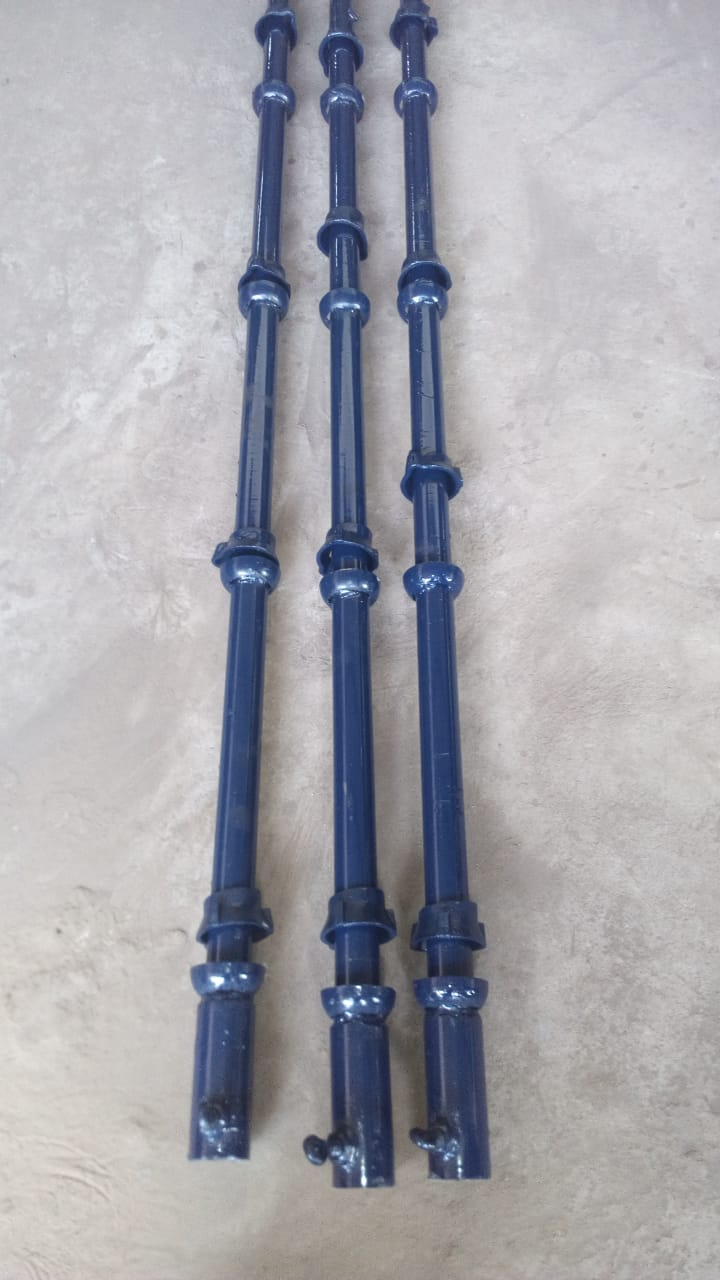

CUPLOCK VERTICAL:

SIZE: 1 MTR , 2 MTR , 2.5 MTR and 3 MTR.

CUPLOCK VERTICALS are Available to suit any propping (or ) access Application economically. The Verticals can be used for support (or) access as Required.

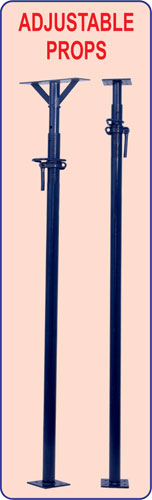

Adjustable Props

Manufactured as per the latest trends of the industry, our range of Adjustable Props is widely in demand in the market. Qualitatively superior, these are available in various types such as:

Type UP1 UP2 UP3 UP4
Height in meters
closed position
1.75
2.0 2.0 3.0
Height in meters
open position
3.12
3.35
3.75
4.75
Safe vertical
load at closed position (kgs)
320 330 290 230
Safe vertical
load at open position(kgs)
230 220 200 115

Some of the specifications and features of these props are as follows:

  • Consist of one outer tube  (50 mm.N.B medium or heavy)  threaded  with malleable nut.
  • Inner Tubes made out of  (40 mm.N.B.medium or heavy)
  • Easy to handle
  • Provide fine adjustment in heights.

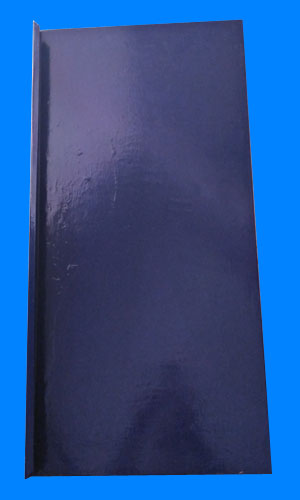

Adjuster Panel

Adopting latest technological development, we have been able to fabricate a wide range of Internal Corner / External Corner / Channel Soldier / Wall Adjuster panel. These are customized as per the specifications of our clients and comply with various international standards.

Internal Corner Panel Size 1250 x 150 x 150 mm
External Corner Panel Size 1250 x 150 x 150 mm
Channel Soldier Size 1250 x 100 mm
2500 mm x 100 mm
Wall adjuster panel size 1250 x 150 /225 /350
Flexible Panel

We are engaged in manufacturing a wide range of Flexible Panel that are widely used in various industries. These are available in various standard sizes and can be customized a as per the specifications of our clients.

Sizes that can be availed from us are:

  • 1250 x 500, 1250 x 400

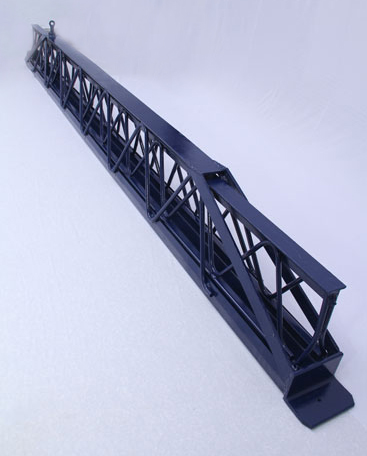

Beam Spans

We fabricate a wide range of Telescopic Beam Spans that are widely in demand in the market. Manufactured in compliance with the latest industrial standards, these consist of an outer and an inner member of varying lengths and are offered in various sizes such as:

Type Combination Minimum Span meters Maximum Span meters
ISOS Inner Short / Outer Short 1.80 3.00
ISOM Inner Short/ Outer Medium 2.40 3.60
IMOM Inner Medium / Outer Medium 2.40 4.20
ILOM Inner Long / Outer Medium 3.00 4.80
ILOL Inner Long / Outer Long 3.00 5.40

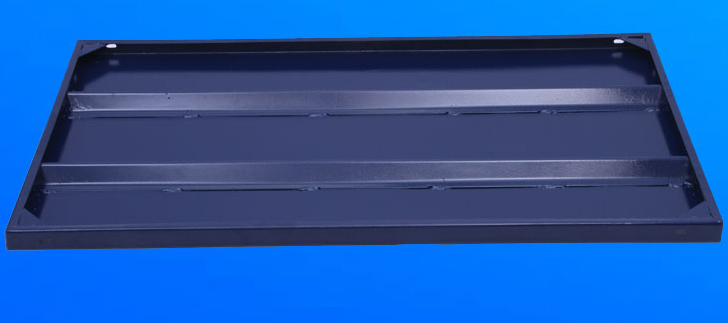

Centering Sheet

We offer a wide range of Centering Sheet/Floor Form that are manufactured with 2 mm. sheets which has been folded on all four side with suitable slot provided with stiffener. There are present adjuster which are used for filling up odd shape of slabs. These are available in standard sizes of:

  • 900 x 600
  • 1150 x 600
  • 800x 600 mm.

The Adjusters are also available in various sizes such as:

  • 1150 x 400 / 250
  • 900 x 400 / 250
  • 800 x 400 / 250
  • 600 x 400 / 250 mm

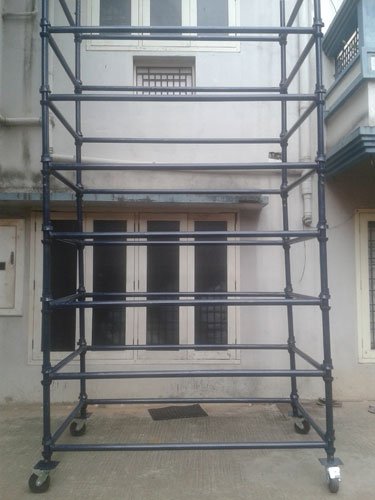

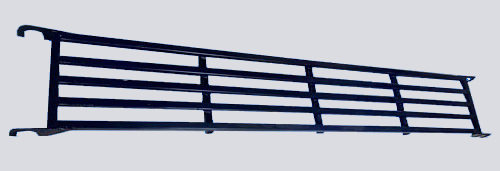

Mobile Tower with Walkway
